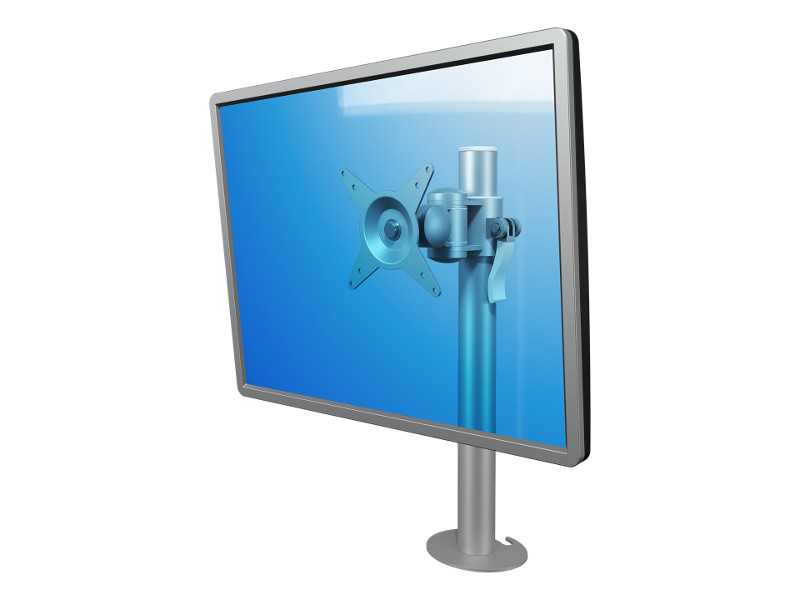

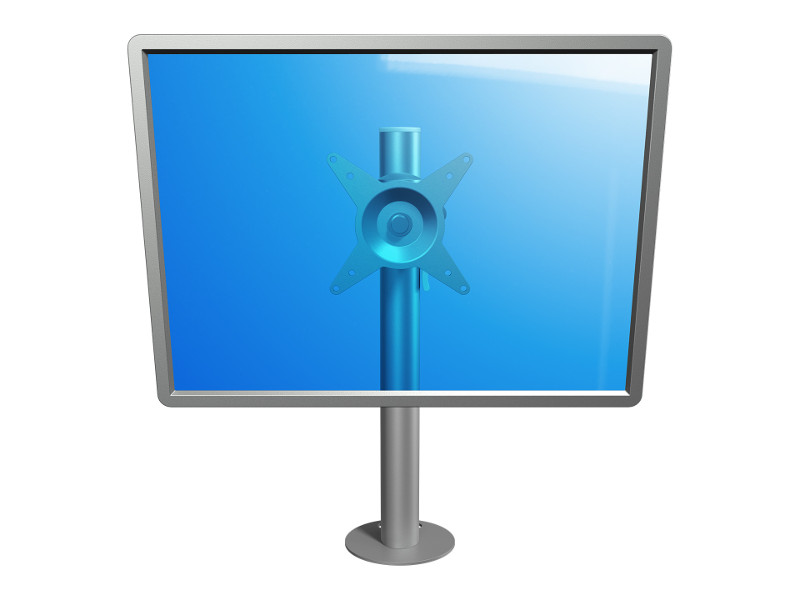

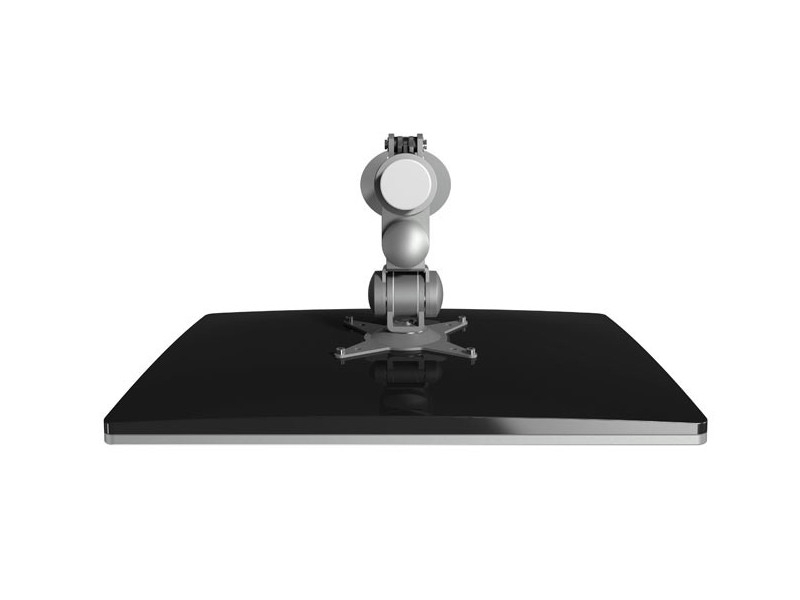

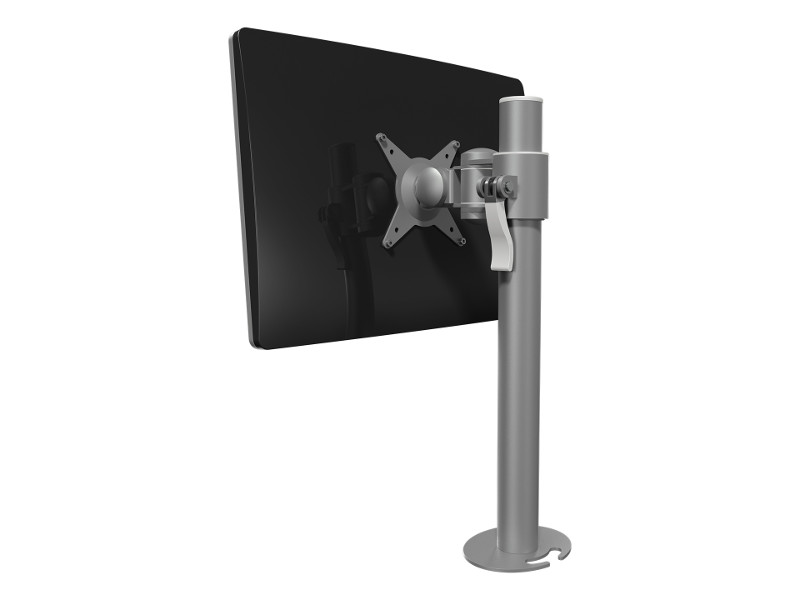

Dataflex Viewmate monitor desk mount (52.652) silver
The proximity of this Dataflex Viewmate monitor arm desk mount (52.652) makes this is an ideal, compact POS (Point Of Sale) solution. Easily set the height of your monitor with the clamp lever. Comes with both bolt through desk and desk clamp.
Dataflex Viewmate monitor arm - desk bracket 52.632 in silver

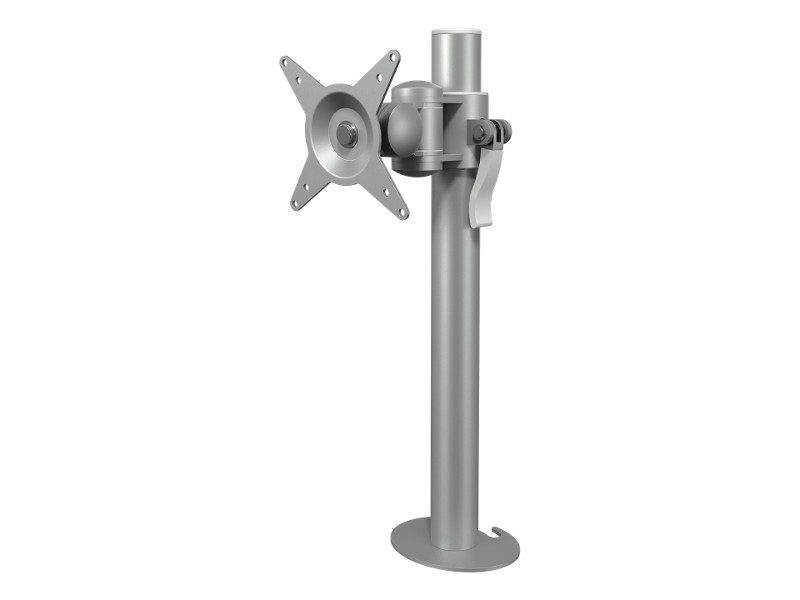

This seemingly simple product vertically mounts a single monitor on your desk, the quick adjust lever ensures easy height adjustment. The proximity of the monitor and pole makes this is an ideal, compact POS (Point Of Sale) solution. An ergonomic design that is robust, cost-effective and easy to use. Comes with both bolt through desk and desk clamp.
Key features Dataflex Viewmate single desk mount (52652)
- Static height adjustment range of 295 mm
- Easy to adjust in height using the clamp lever
- Fixed depth
- Maximum supported height of monitor 713 mm (28,1")
- VESA: MIS-D 75 x 75/100 x 100mm compatible

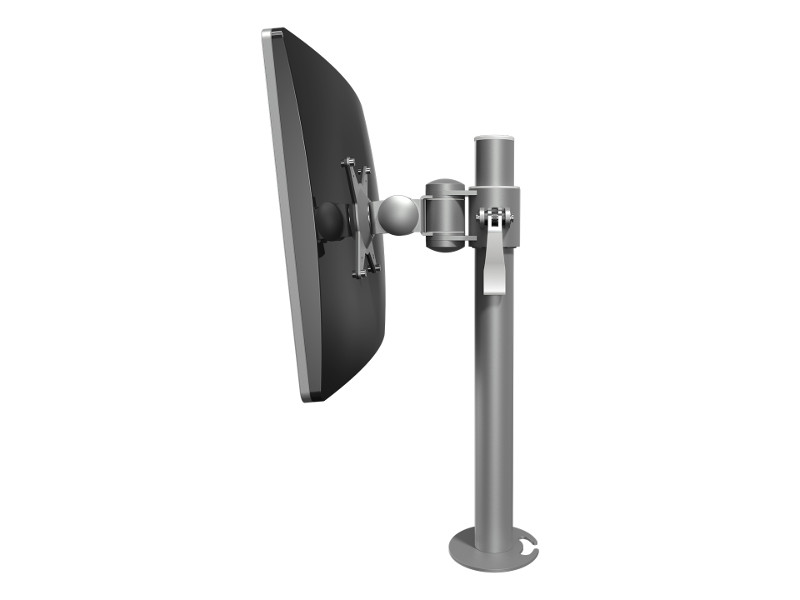

- Rotate 360°, tilt +90°/-90°, swivel +360°
- Weight capacity max. 15 kg per monitor
- Post height 400mm
- Post diameter 38mm
- Quick lock/release post bracket

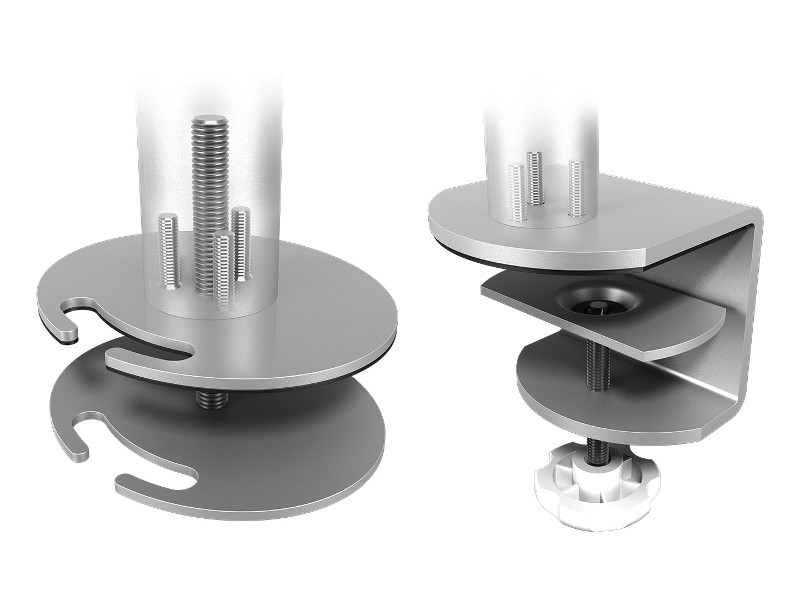

- Comes with a desk clamp mount and bolt-through desk mount
- Suitable for a desktop thickness of 5 up to 60 (clamp) or 70 mm (bolt through)
- Main components made of steel
Does your monitor or display suit?
We will gladly check if your monitor is suitable for this Dataflex Viewmate bracket. Simply send us at the end of the ordering process in the comment box your model (Manufacturer + model no.). We will then check for you whether the monitor or the display to monitor mount fits and if not, we will contact you.
VESA standard - Read more about the VESA standards of monitor brackets!
| Product sheet: |  [pdf, 180 kb] |
|---|---|

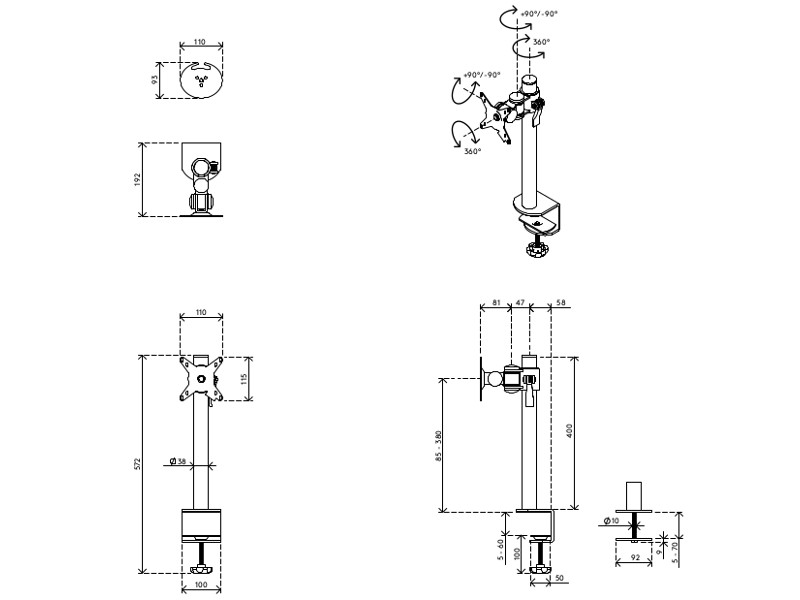

| Technical drawing: | [pdf, 97 kb] |
| Installation manual: | [pdf, 319 kb] |
| Warning/safety instructions: | [pdf] |
| Capacity: | 15 kg |
| Tilt: | 180° |
| Rotate: | 90° |
| Height range (mm): | 400 |
| Pivot: | 90° |
| Swivelling range: | 180° |
| Screen size: | 14"-24" |
| Thickness of table (mm): | Durchtisch - max. 70mm; Tischklemme - max. 60mm |
| Special features: | Comes with both bolt through desk (max. 70mm) and desk clamp (max. 60mm) |
| VESA Standard: | 75x75, 100x100 (www.vesa-standard.com) |

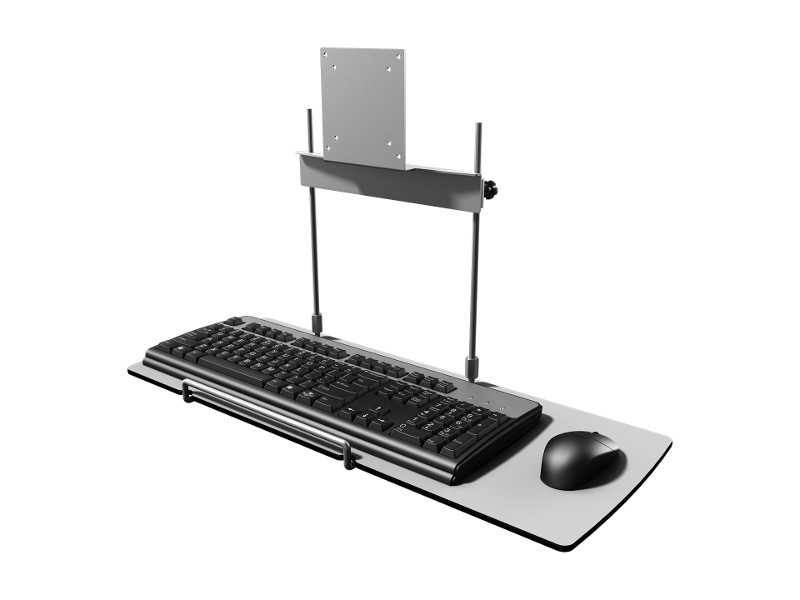

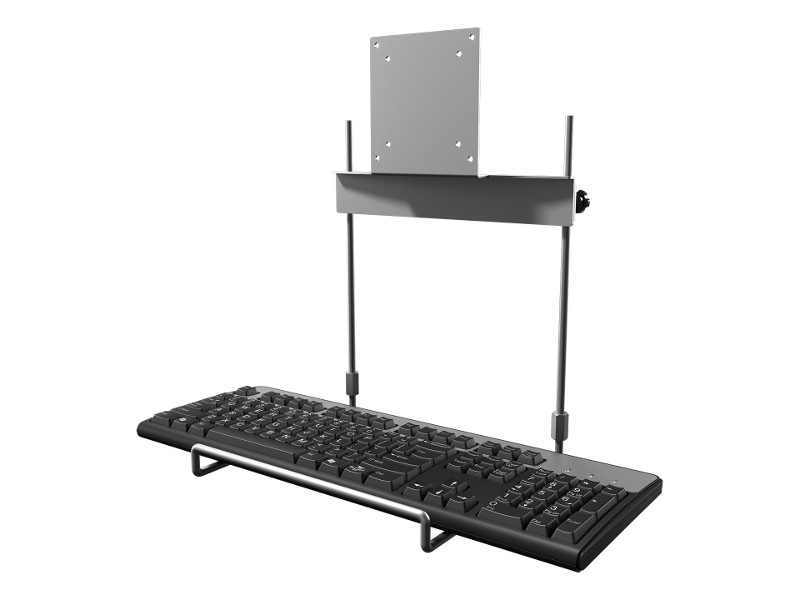

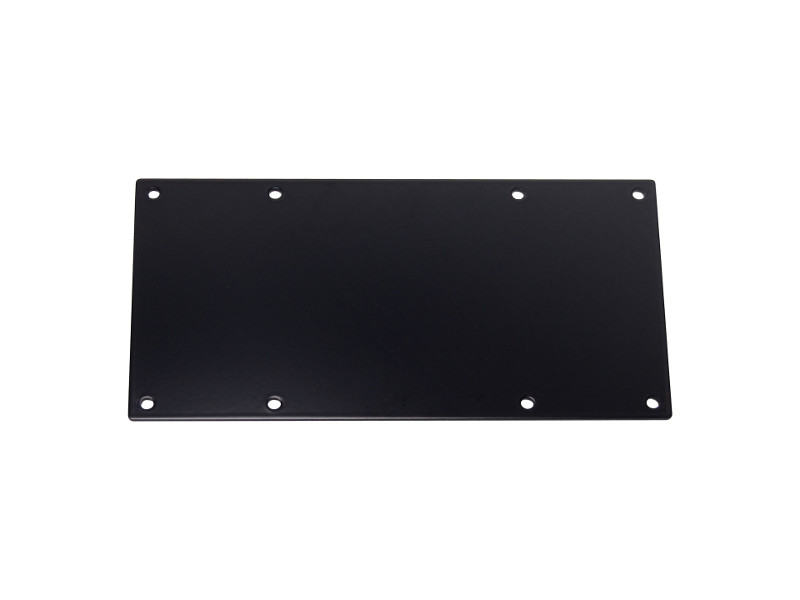

| Accessories: | Dataflex Universal Keyboard Bracket 582 (51.582) Dataflex Universal VESA Adapter 043 (51.043) |
| Packaging dimensions (LxWxH in mm): | 530 x 170 x 106 |
| Contains installation material: | + |
| Manufacturer/Importer: | Dataflex International BV, Van Nassauweg 2-6, 2921 LX Krimpen a/d IJssel, Niederlande, info@dataflex.de |
| Warranty: | 5 years |
| Inch size: | 14 inch, 15 inch, 17 inch, 18 inch, 19 inch, 20 inch, 21 inch, 22 inch, 23 inch, 24 inch |
| Mobility: | height adjustable , rotatable (pivot), swivelling, tilting |
| Mounting type: | desk - clamp, desk - drill screw fastening |
| Multi-monitor mount: | 1 monitor |
| color: | Silber |
| VESA (in mm): | VESA 75x75, VESA 100x100 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
